| Brand Name : | Yisen |
| Model Number : | FT-UV950A-20 |
| Certification : | CE ROHS |
| Payment Terms : | T/T, Western Union, MoneyGram paypol |
| Supply Ability : | 2000pcs |
| Delivery Time : | 2-6 work days |
| This camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions. | |||

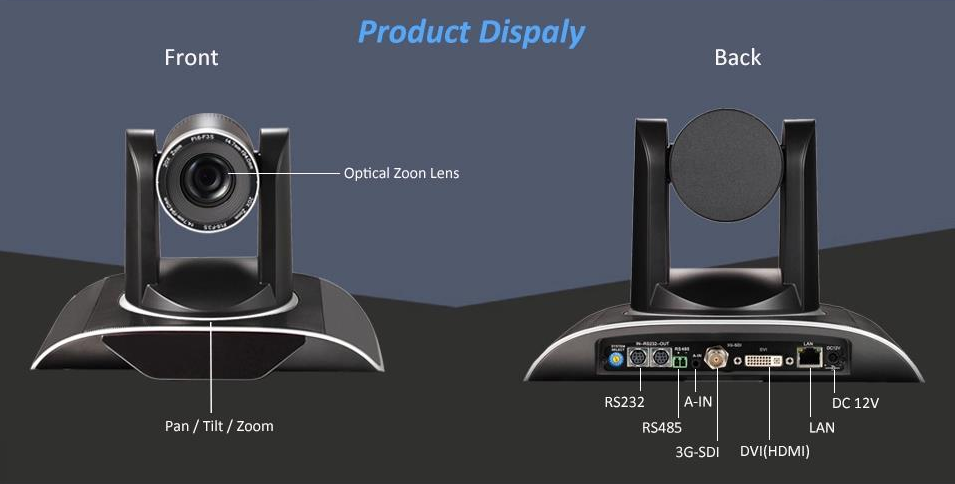

| Main Features | ●Three Optical Zoom Can Choose 12x optical zoom, wide angle: 72.5° 20x optical zoom, wide angle: 54.7° 30x optical zoom, wide angle: 65.1° ●Multiple Protocol UVC, VISCA, ONVIF, PELCO-D/C ●Support IP-Stream H.264, H.265, MJPEG, HD video stream over RTSP, RTMP, TCP/IP, HTTP, etc ●Rich Interface Output SDI, HDMI, USB, LAN(POE), RS232/485, LINE IN ●Control Way Can control by RS232/RS485, and remote controller ●NDI HX Camera Suitable for Broadcasting with Low Latency&Bandwith NDI | HX 4.0 Enabled: * Low bandwidth * Low latency: laten about 80-100 milliseconds, better than H.264 * Need only one Ethernet cable to solve all the video/ audio/ indicator light/ cable issues Product Display: Multi Output: NDI | HX 4.0, SDI, HDMI, LAN (POE) ●1080P Full HD High quality HD CMOS sensors of 1/2.8 inch, 2.07 million effective pixels, so as to reach maximum 1920 x 1080 resolution and achieve quality image. ●Ultra-high Frame Rate The output frame rate is up to 60fps in 1080P. | ||
| Model | FT-UV950A-12 | FT-UV950A-20 | FT-UV950A-30 |
| Camera and Lens Parameters | |||
| Video System | DVI (HDMI)/SDI interface video format 1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97 U3.0 interface video format 1)USB3.0: 1920X1080P60/50/30/25;1280X720P60/50/30/25;960X540P30;640X360P30;640X480P30;352X288P30;800X600P30 2) USB3.0 compatible with USB2.0 :960X540P30; 640X360P30; 1280X720P10/15; 720X576P50; 720X480P60; 640X480P30; 352X288P30; 800x600p30 U2 interface video format 176x144/320x240/320x180/352x288/640x480/720x480/720x576/640x360/800X600/960X540/1024X576/1024X768/1280X720/1920X1080P30/25/20/15/10/5 | ||
| Lens optical zoom | 12x optical zoom, f=3.9～46.8mm | 20x optical zoom f=5.5～110mm | 30x optical zoom f=4.3～129mm |
| Perspective | 6.3°(narrow angle)～ 72.5°(wide angle) | 3.3°(narrow angle)～ 54.7°(wide angle) | 2.34°(narrow angle)～ 65.1°(wide angle) |
| Aperture factor | F1.8 ～ F2.4 | F1.6 ～ F3.5 | F1.6 ～ F4.7 |
| Sensor | 1/2.8 inch high quality HD CMOS sensor, Effective Pixel: 16: 9 2.07 megapixel | ||
| Optical Zoom | 12X 20X 30X | ||
| Digital zoom | 10X | ||
| AV | F1.8 ～ F2.4 | ||
| Minimum Illumination | 0.5Lux (F1.8, AGC ON) | ||
| DNR | 2D & 3D DNR | ||
| White Balance | Auto / Manual/ One Push/ 3000K/ 3500K/4000K/4500K/5000K/6500K | ||
| Focus | Auto/Manual | ||
| Aperture | Auto/Manual | ||
| WDR | OFF/ Dynamic level adjustment | ||
| Video Adjustment | Brightness,Color,Saturation,Contrast,Sharpness,B/W mode,Gamma curve | ||
| SNR | >55dB | ||
| Interface Function Performance | |||

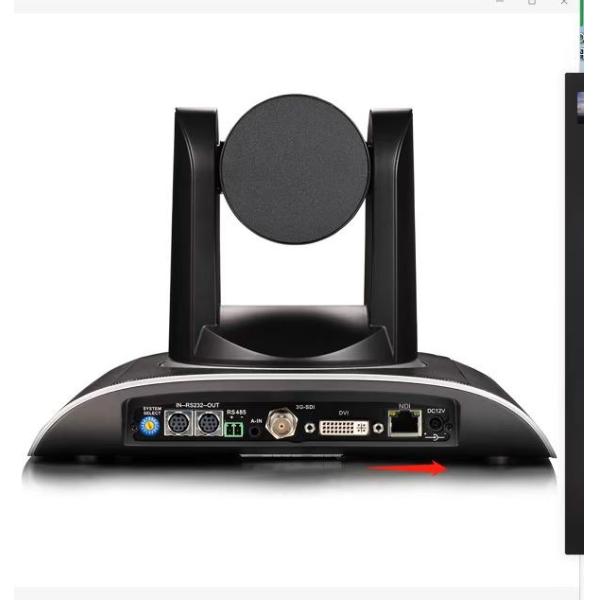

| Video Interfaces | FT-UV950A-12/20/30-ST Model: 3G-SDI, DVI(HDMI), LAN, RS232(IN/OUT), RS485, A-IN, NDI (optional) FT-UV950A-12/20/30-U3 Model: USB3.0, DVI(HDMI), LAN, RS232(IN) FT-UV950A-12/20/30-U2U3 Model: USB3.0, USB2.0, HDMI, LAN, RS232(IN), A-IN | ||
| Video output interface | DVI (HDMI), HDMI, SDI, LAN, USB3.0, USB2.0 | ||
| Image Code Stream | Dual stream output | ||
| Video Compression Format | H.264, H.265 | ||
| Control Signal Interface | RS-232 Ring through RS232 output | ||
| Control Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps | ||
| Audio Input Interface | Double track 3.5mm linear input; | ||
| Audio Compression Format | Audio Compression Format | ||
| HD IP Interface | 100M IP port(100BASE-TX); 5G WiFi (optional), Support Visca protocol control through IP port. | ||
| Network | RTSP, RTMP, ONVIF, GB/T28181, NDI(Optional) | ||
| Protocol | VISCA/Pelco-D/Pelco-P；Baud rate:115200/9600/4800/2400 | ||
| PTZ Parameters | |||
| Pan Rotation | ±170° | ||
| Tilt Rotation | -30°～+90° | ||
| Horizontal control speed | 0.1 ～100°/sec | ||
| Pitch control speed | 0.1～45°/sec | ||
| Preset speed level | 100°/sec, pitch: 45°/sec | ||
| Number of preset positions | The user can set up to 255 preset positions (10 remote controls) | ||
| Generic Specification | |||
| Power Interface | HEC3800 outlet (DC12V) | ||
| Power adapter | input AC110V-AC220V output DC12V/1.5A | ||
| Input Voltage | DC12V±10% | ||
| Current Consumption | 1.0A (Max) | ||
| Power Consumption | 12W (Max) | ||
| Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) | ||
| Storage Temperature | -10℃～+60℃ | ||
| Working humidity | 20%～80% | ||
| Size | 258mmX172mmX169mm | ||
|
|
